custom rom 4.2.1 ColorOS for PICOphone4 GDX

Luckily, this weekend i’ve got a borrowed device and finally made it porting the color os from my GDS custom rom for this GDX.

custom rom 4.2.1 ColorOS for PICOphone4 GDX

After creating ColorOS port ROM for GDS model, i began targeting this model as my 2nd port, but time is my enemy, so many backlog i have to taken care of, worse,  i don’t have the device at hand. Luckily, this weekend i’ve got a borrowed device and finally made it porting the color os from my GDS custom rom.
As I already told on my article before, this ColorOs is heavy weight ROM, the framework and all the apps were heavily customized to bring the slick look on the results, thus resulting a big footprints on the size of the ROM. If you concern about the simplicity and small footprints, and already happy with your stock rom or my Xperia custom rom, just stick with it … this is another league of android OS. If you ask for analogy, it’s like installing Unity after years using xfce 🙂 LOL. Push aside the enormous size, nevertheless, this is one of the most beautiful android rom I have ever seen. This ColorOS is a stock os from Oppo N1device, The look, the launcher, widget, animation and icons is very well touched and had a slick design. It also has a nice gesture interaction feature that makes your device more intuitive and easy to use. See and prove yourself.

Features :

  • Android 4.2.1 with 3.4.5 kernel
  • Rooted, busybox, fully deodexed, zipaligned
  • init.d support
  • gps, bt, hsdpa tweak
  • multi languages
  • everything works
  • many hw v-codec, including h264x for 1k to 4k video playback
  • no need to resize system partition, it’s compatible with all my custom roms here and axioo’s stock rom.
  • Superuser by Clockworkmod (thanks to Koush)
  • ColorOS 1.0.0i rom base (thanks to deepak2111)
  • … something I forgot to list

Here we go the custom rom :

Custom ROM :

Download :

MD5 : 4c3d04ef603ea827450be711defa0cbd

EDIT140314 :

Fix the cellular radio unstable

Download :

MD5 : 477739c5cc422e3efaca171be94f3806


Here below some addons apks from the original base rom, flash this after you flash the custom rom above if you want. I believe this apps is not mandatory for most users. I want to delete this bloated apps at first, but had a second thought, so I separate this into addons. It contains some oppo-userguide, some oppo-security apps, some weather widget, emoticons, and some oppo-utility … etc, etc. Don’t worry about the footprints, the script will not install this bunch of apks into the system partitions, it will reside data partitions so you can easily uninstall them in case you never need it.

Addons :

MD5 : 3a071578b88675b3b820d1247a367354

(Yes, I know and aware that filename represent the gds model, i’m not mistaken uploading or creating link, I purposeful made it, so it will compatible between the two models for easy maintaining.)

Known issues :

Camera has stopped issue

This Oppo framework had some nifty features which one of it can detect language and country region which you are in from the simcard provider automatically during initial installation setup wizard. But this feature also brings another problem because the camera will force close unexpectedly if you are using any country region other than United States. So, if your camera cannot open and throws an error “Unfortunately camera has stopped” please make sure you go to Settings -> Language and Inputs, and make sure you choose United States as your Region.
It’s not about the language you use, it’s about the region. Maybe this Oppo framework had some country region classification or something like that.

And here is the steps to flash this custom rom :

Requirement and Preparation :

  • Read this thoroughly : Your warranty is now void !!! I am not responsible if you brick your phone, get stuck in a bootloop, or if your phone grows arms and tries to kill you. Flash at your own risk! Please do some research if you have any concerns about risk of flashing a custom rom before continuing! YOU are choosing to make these modifications, and if you point the finger at me for messing up your device, I will laugh at you!! If you have any other objection, don’t bother to comment, just close this page!
  • This custom rom need a custom recovery to flashed into the device, if you haven’t got it, get it here : cwm and twrp recovery for PICOphone4 GDX. Both are working good for this device, get it whichever you like.

Flashing Process :

The steps to flash this custom rom is pretty straight forward :

  • Download the custom rom and addons-apks from link above and copy it to the root of your sdcard, you may check it first with your file manager to confirm it was there. There are two sdcard storage on this device, so you must know it’s at the internal sdcard or external sdcard. I prefer you to put this on external sdcard to avoid any difficulties.
  • Boot into recovery mode by turning off your phone, hold down Volume + button then press power button, hold them both until you see axioo logo on screen then release it. Wait a sec or two … then you’ll be in recovery mode.
  • BACKUP your stock rom and data using BACKUP feature, make sure you use external storage as destination because this backup is relatively big.
  • Choose Wipe Data / Factory reset and execute it.
  • Choose Wipe cache partition and execute it
  • Choose Wipe Dalvik Cache and execute it
  • Go back to main menu, and choose Install
  • It will open a list of file on your sdcard, choose the custom rom zip file that you put on step 1 and flash it.
  • After the ROM installation completed, choose back if you want to install the addons-apks
  • Choose Install again and point to the addons-apks zip file you put on step 1 and install it
  • After the installation completed, choose Reboot System
  • Done

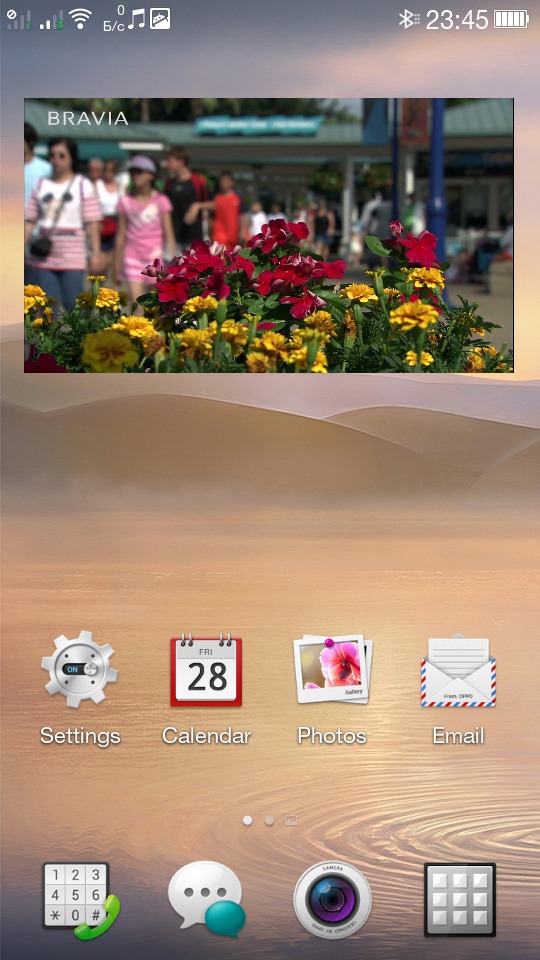

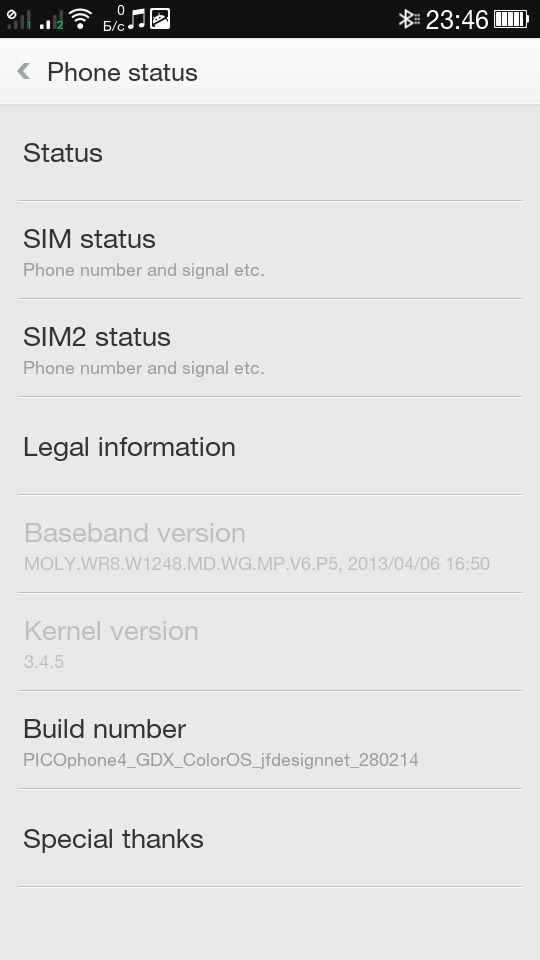

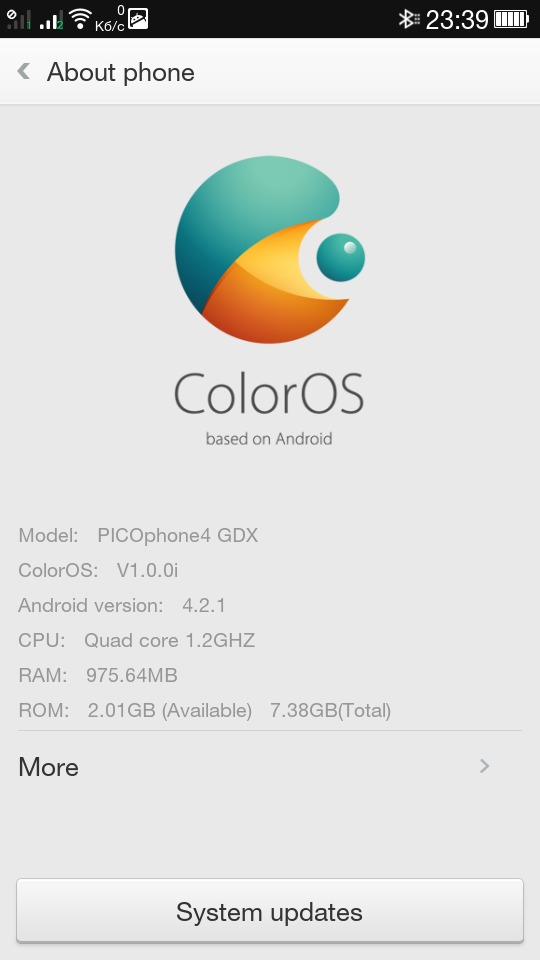

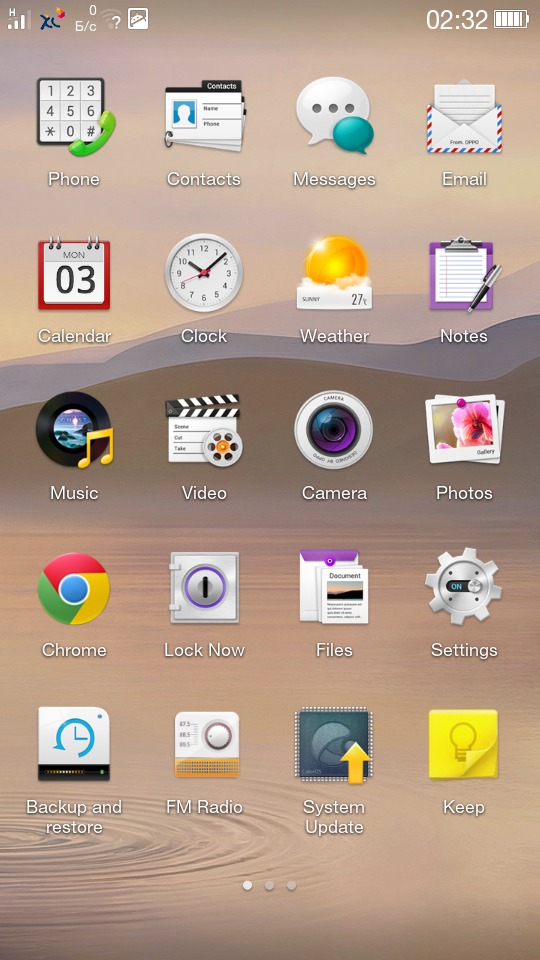

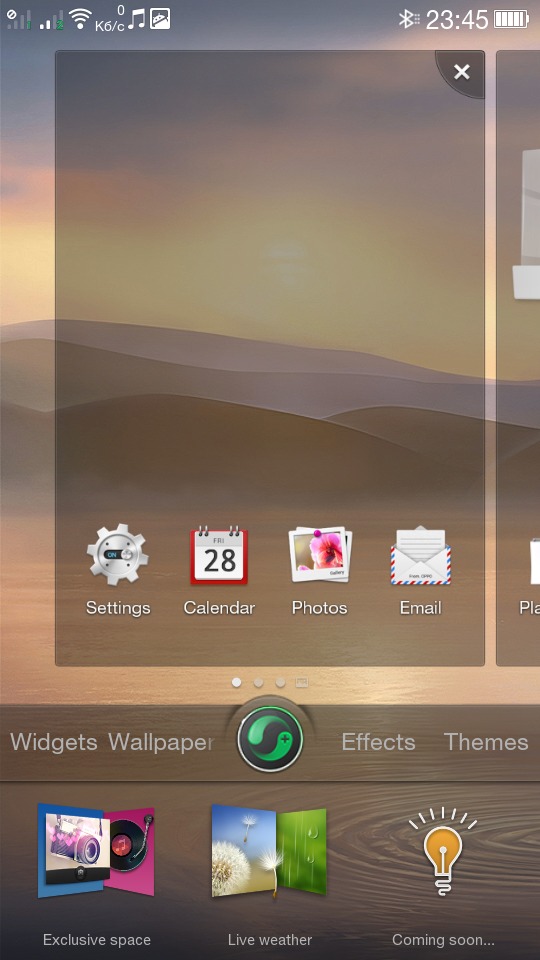

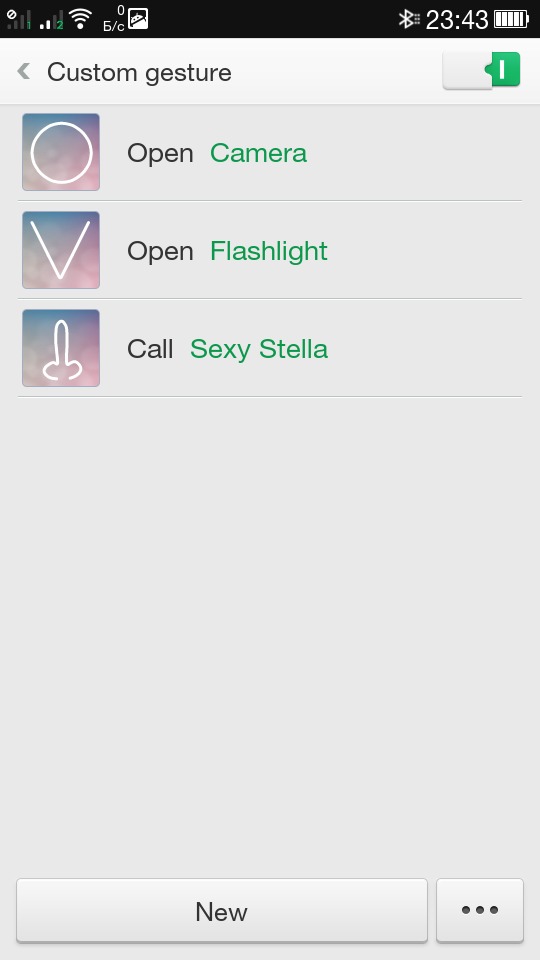

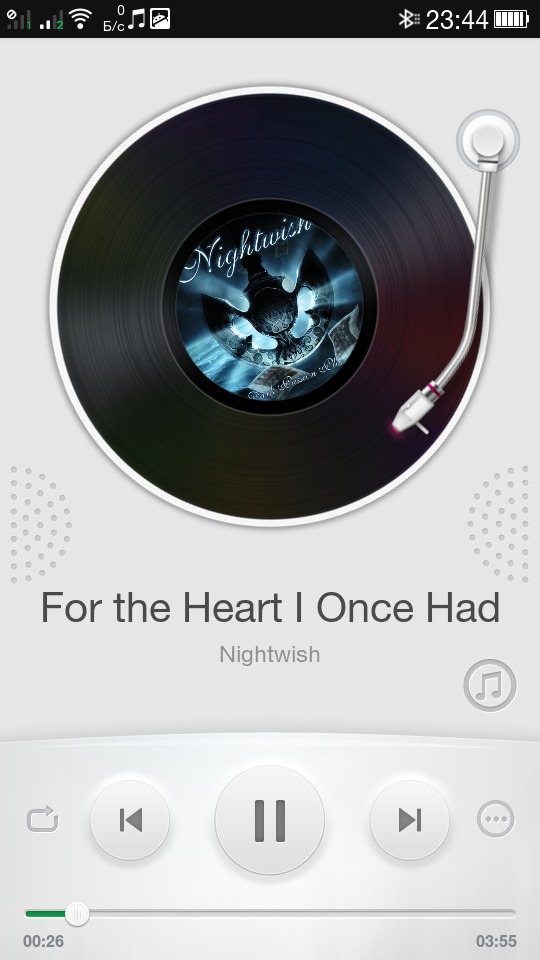

Here is the result after flash :

Some other notes from me :

Do Not install Xposed Framework !

The Xposed framework is NOT compatible with this oppo framework and will causing bootloop. According to the creator of the framework there are no fix for this issue, you can read the rest here. If you ask me, I don’t think you need to customize again, it’s already pretty.

Enjoy your PICOphone4 GDX
